8.3  Non java SDT Tabs (obsolete)

In the obsolete non java rendering mode (iicom(';projava0;curtabChannel')) the channel tab shown below is used to scan through the data.

---

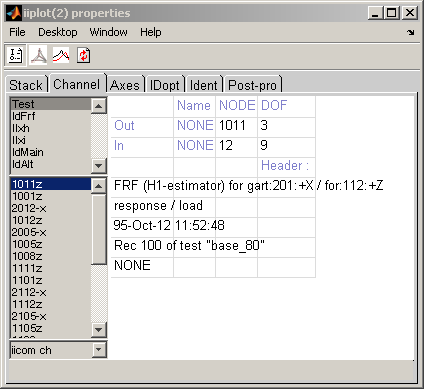

Figure 8.5: Channel tabs of the iiplot interface.

---

Major commands you might want to know

• use the to scan trough different transfer functions. Note that you can also use the + or - keys when a drawing axis is active.
• Go the Channel tab of the property figure and select more than one channel in the list. Note that you can also select channels from the command line using iicom('ch 1 5').
